2000L Brewhouse System
2000L Brewhouse System
Mash tun, lauter tank, boiling kettle, whirlpool tank in various combination
Popular combination for reference
3-vessel: Mash tun-lauter tank-kettle/whirlpool tank or Mash/lauter tank-kettle-whirlpool tank With HLT optional
4-vessel: Mash tun-lauter tank- kettle-whirlpool tank With HLT optional
.Double/single stage wort cooling
.High efficiency and detachable plate heat ex-changer
.Agitator/raker motors, variable frequency drives optional
.V-type milling sieve plate/false bottom
.Stainless steel integrated work platform
.Sanitary and efficiency pumps
.High accuracy temperature sensor.
.Inline glass sight glass optional (optional)
.Flow meter optional (optional)
.Wort collecting pipe (optional)
.Centralized hard-piped manifold (optional)
.Separate brewhouse control (optional)
2000L or 4000L Fermentation System
.Uni-tanks/conical fermenters:
.Stainless steel conical cylindrical fermenter tanks
.2000L or 4000L, flexiable collocation
.25% head space at minimum
.Water pressure release valve
.Safety valve (pressure relief&vacuum relief)
.Sanitary Perlick sampling valve
.Rotating racking arm
.High accuracy temperature sensor
.Dry hops adding optional
.Manhole, valves, pressure& temperature control, fittings included
2000L or 4000L BBTs optional
Stainless steel BBTs/serving tanks for beer maturation
Dish bottom inside
2000L or 4000L, flexible collocation
15% head space at minimum
Pressure&vacuum relief
Sanitary sampling valve
High accuracy temperature sensor
Carbonation device
Liquid level optional
Extra CO2 blow-off arm optional

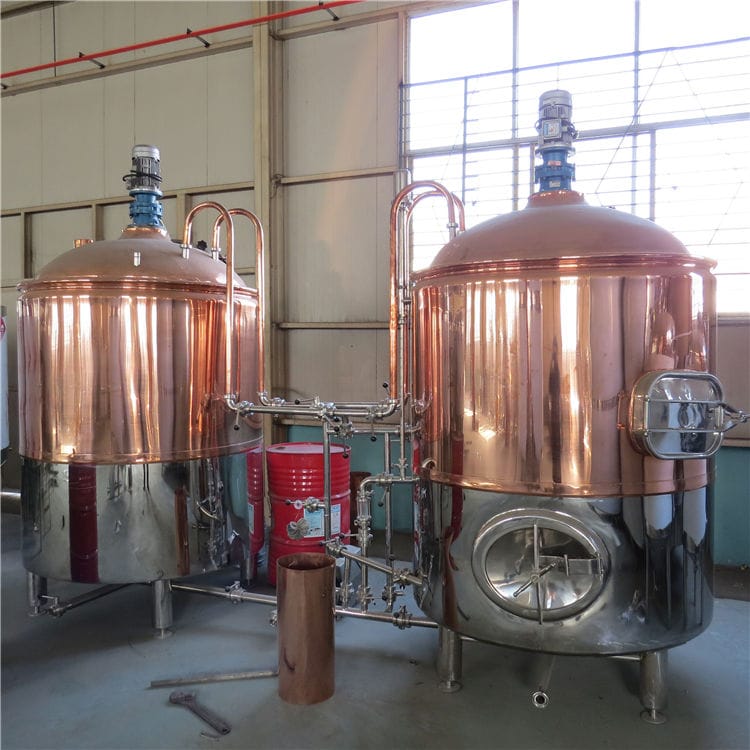

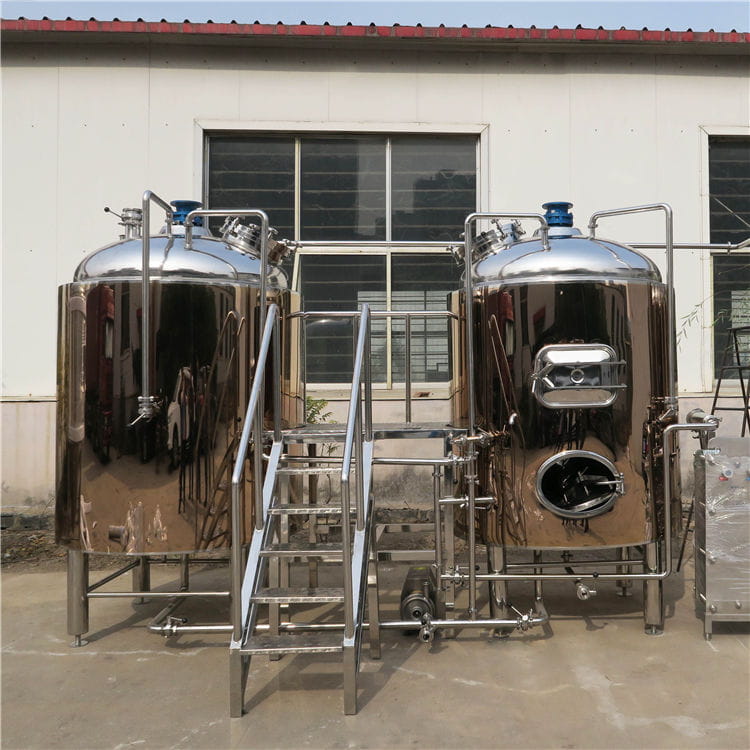

More pictures for reference
