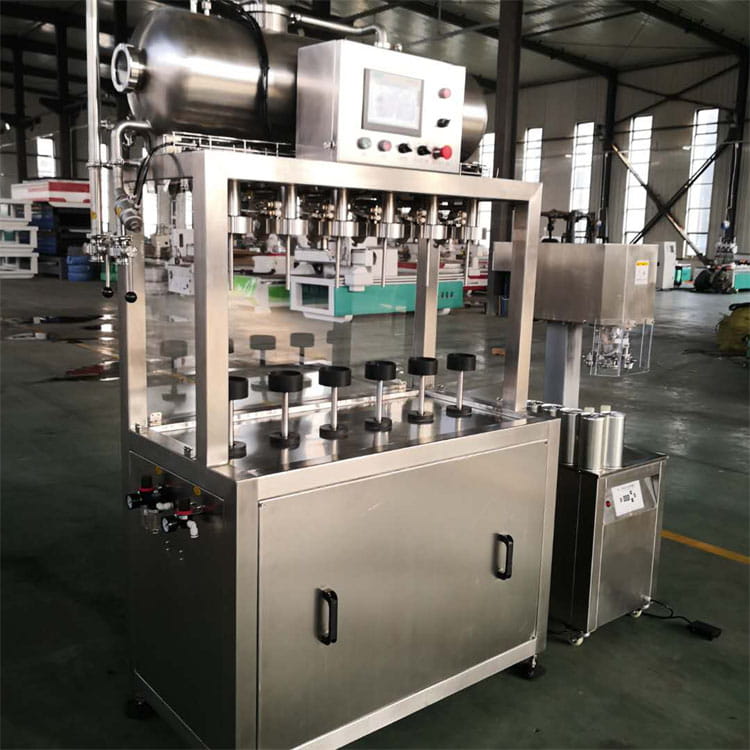

Beer Can Filling And Capping Machine
Main function and feature
1. Automatic control by PLC, all parameters can be adjusted.
2. Filling and capping process can be finished in this machine at one time.
3. With CO2 pressurization function
4. Adopt isobar filling method and with unique pressure maintaining system,performance stable and reliable, beer loss minimum.
5. With buffer tank to guarantee a stable filling process.
Specification
| Item | Value |
| Name | Beer can filling and sealing machine |
| Automatic Grade | Semi-automatic |
| Capacity | From 380cph to 800cph, different choice |
| Driven Type | Electric |
| Voltage | 220V,50HZ,Single Phase |
| Place of Origin | China |
| Filling type | Isobaric |
| working stations | 4 head, 6 heads, 8 heads or more |
| Filling Accuracy | ≥ 99.7% |
| Core Components | Pressure vessel |
| Beer Source Pressure | 0.2-0.3 Mpa |
| Air Source Pressure | 0.6-0.8 Mpa |
| CO2 Source Pressure | 0.2-0.3 Mpa |
| Materials | Stainless steel SUS304 |
Package
Company Profile
Certificate of company
Customer Visit
Delivery (Package and shipping)
1.We could be responsible for the delivery by sea, and you could find your own agent of transportation.
2.Sound production management and Reliable sea forwarder for many years guarantee the timely delivery.
3.Experienced package guarantee the quality of equipment and ensure customers’ satisfying.
4. One 20’ or 40’HQ containers are needed to load.
Our Advantages
1.Manufacturer of craft beer brewing equipment for more than 23 years;
2.Good quality of raw materials and mature technics of producing;
3.Free drawing design service before order;
4.Engineers are available to go to customer’s door to guide installation and training brewing;
5.Lifetime technology support;
6.Brewing raw materials’ supplying.
7.We have our own brand “CGBREW”.
