30HL-40HL Brewery Equipment

Short Description:

. Double/single stage wort cooling

. High efficiency and detachable plate heat ex-changer

. Agitator/raker motors, variable frequency drives optional

. V-type milling sieve plate/false bottom

. Stainless steel integrated work platform

. Sanitary and efficiency pumps

. High accuracy temperature sensor.


Product Detail

Product Tags

3000L Brewhouse System

Mash tun, lauter tank, boiling kettle, whirlpool tank in various combination

Popular combination for reference:

3-vessel: Mash tun + Lauter tun + Kettle Whirlpool tun  or Mash Lauter tun + Kettle tun + Whirlpool tun + HLT optional

4-vessel: Mash tun +Lauter tun + Kettle tun + Whirlpool tun + HLT optional

5-vessel: Cooking pot + Mash tun +Lauter tun + Kettle tun + Whirlpool tun + HLT optional

. Double/single stage wort cooling

. High efficiency and detachable plate heat ex-changer

. Agitator/raker motors, variable frequency drives optional

. V-type milling sieve plate/false bottom

. Stainless steel integrated work platform

. Sanitary and efficiency pumps

. High accuracy temperature sensor.

. Inline glass sight glass optional (optional)

. Flow meter optional (optional)

. Wort collecting pipe (optional)

. Centralized hard-piped manifold (optional)

. Separate brewhouse control (optional)

Main systems options and reference pictures for full set equipment.

All equipment are manufactured with Stainless steel 304, and also acceptable of stainless steel 316 or 316L.

6

A. Brewhouse System

2-Vessel, 3-Vessel or 4-Vessel brewhouse are all available, kindly advise your brewing process and we will make a suitable specifications for you.

5

B. Fermentation System

10

C. Chilling System

8

D. Cleaning System

We will based on the tanks volume and quantity to setup the CIP system to make sure it is enough to meet your demand of cleaning the system and pipelines.

4
6

E. Heating System

Used by electricity elements or steam generator for mash cooking.  Electricity, LPG, LNG or Biological particle steam generator all available.

5
7

F. Control System

Siemens PLC control and Digital Panel control both are available

11
12

3000L/6000L/9000L Fermentation System

. Uni-tanks/conical fermenters:

. Stainless steel conical cylindrical fermentation tanks

. 3000L, 6000L or bigger, flexiable collocation and big volume will more save cost

. 25% head space at minimum

. Water pressure release valve

. Safety valve (pressure relief&vacuum relief)

. Sanitary Perlick sampling valve

. Rotating racking arm

. High accuracy temperature sensor

. Dry hops adding optional

. Manhole, valves, pressure& temperature control, fittings included

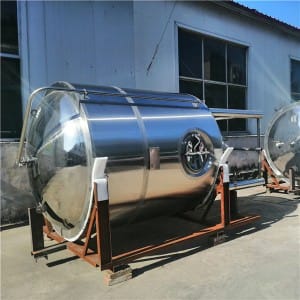

3000L/6000L/9000L BBTs optional:

Stainless steel BBTs/serving tanks for beer maturation

Dish bottom inside

3000L, 6000L or bigger, flexible collocation

15% head space at minimum

Pressure&vacuum relief

Sanitary sampling valve

High accuracy temperature sensor

Carbonation device

Liquid level optional

Extra CO2 blow-off arm optional
